Kits for Advanced Studies

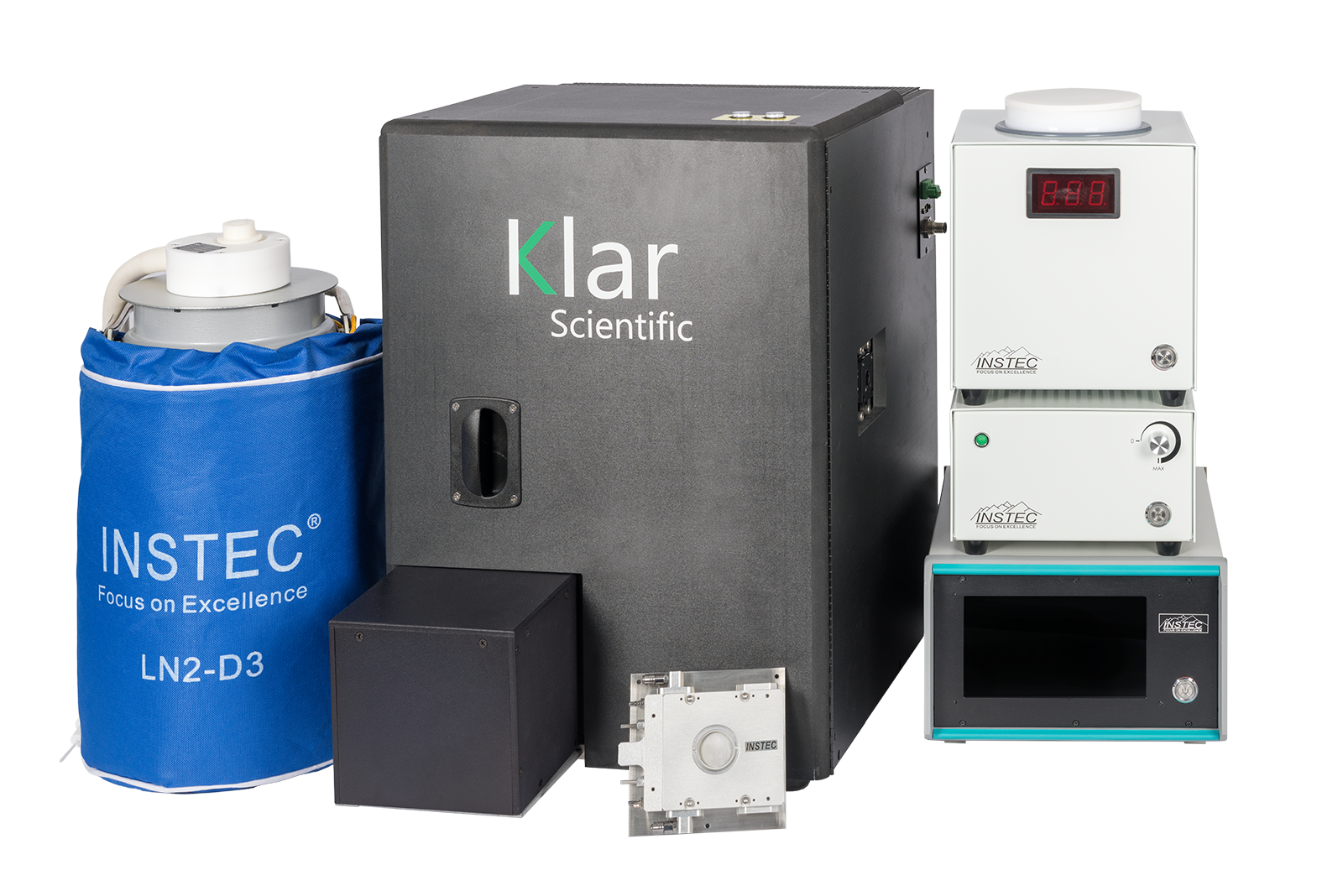

Low Temperature Kit
Klar’s universal optical design allows the owner to expand capabilities with a variety of kits. The low-temperature kit provides spectroscopic microscopy down to 80 K.
Peak shifts of 0.1 meV can be detected, providing a sensitive probe of defects and sample uniformity.
Variable-temperature (80-400 K) spectroscopy from the near-IR to the deep-UV (1700-266 nm).
Scanning produces photoluminescence (PL) or Raman maps with micron resolution.
The Mini Pro’s universal optical design allows the user to expand capabilities with a variety of kits. The Low-Temperature Kit provides spectroscopic microscopy down to 80 K.
Product Highlights
Variable temperature (80-400K). Spectroscopy from the near-IR to the deep-UV (1700-266 nm)
Scanning produces photo-luminescence (PL) or Raman maps with micron resolution
Peak shifts of 0.1 meV can be detected, providing a sensitive probe of defects and sample uniformity.
Deep UV 266 nm Free Space Laser Kit
The Mini Pro with the deep-UV kit provides PL spectroscopy at 266 nm excitation, enabling studies of ultra-wide bandage semiconductors such as Ga2O3 and AIN.
Mapping the position of the PL band (eV) of B-Ga2O3 enables sensitive detection of defects such as dislocations.
The Deep-UV Kit allows the Mini Pro to provide PL spectroscopy at 266 nm excitation. This enables studies of ultra-wide bandage semiconductors such as. Ga2O3 and AIN.
Mapping the position of the PL band (eV) of B-Ga2O3 enables sensitive detection of defects such as dislocations.
